This blog will establish itself as the definitive source of information for understanding and solving parking lot drainage problems in Montreal and Quebec.

Why Good Drainage is Crucial for the Longevity and Safety of Your Parking Lot in Montreal? (Focusing on local climate challenges).

Considering the rigorous winters and abundant rainfall we experience in Montreal, good drainage isn't just convenient for your parking lot—it's absolutely crucial for its longevity and safety! Here's why:

1. Combating the Freeze-Thaw Cycle:

• The Problem: During winter in Montreal, water seeps into the cracks and pores of your parking lot pavement. When temperatures drop below freezing, this water freezes and expands. This expansion exerts tremendous pressure on the asphalt and concrete. Upon thawing, the water leaves voids and weakens the structure. This freeze-thaw cycle repeats countless times throughout winter and spring, causing progressive and significant damage.

• The Drainage Solution: An efficient drainage system allows rainwater and snowmelt to be quickly evacuated from the surface and underlying layers of the parking lot. By preventing water from accumulating and seeping in, the amount of water available to freeze and expand is drastically reduced, thus minimizing structural damage.

2. Preventing Cracking and Crumbling:

• The Problem: The constant accumulation of water, even without freezing, can saturate the base layers of the parking lot. This saturation weakens the structural support, making the pavement more susceptible to cracking under the weight of vehicles. Over time, these cracks widen and can lead to the crumbling of the surface.

• The Drainage Solution: Good drainage keeps the base layers dry and stable, providing solid support for the parking lot surface. This reduces stress on the pavement and helps prevent the formation of cracks and premature deterioration.

3. Minimizing the Risk of Hydroplaning and Dangerous Conditions:

• The Problem: During heavy rainfall, common in Montreal during spring and autumn, the accumulation of water on the parking lot surface creates a significant risk of hydroplaning for vehicles. This can lead to loss of control and accidents.

• The Drainage Solution: A proper drainage system quickly channels rainwater away, keeping the parking lot surface as dry as possible. This improves tire traction and reduces the risk of hydroplaning.

4. Protecting Long-Term Investment:

• The Problem: Extensive repairs to a parking lot damaged by water and the freeze-thaw cycle can be costly and disruptive. Poor drainage accelerates deterioration and reduces the lifespan of your investment.

• The Drainage Solution: Investing in a good drainage system from the outset, or ensuring your existing one is in good condition, is a smart preventative measure. By protecting the structure from water damage, you prolong the lifespan of your parking lot and avoid costly future repairs.

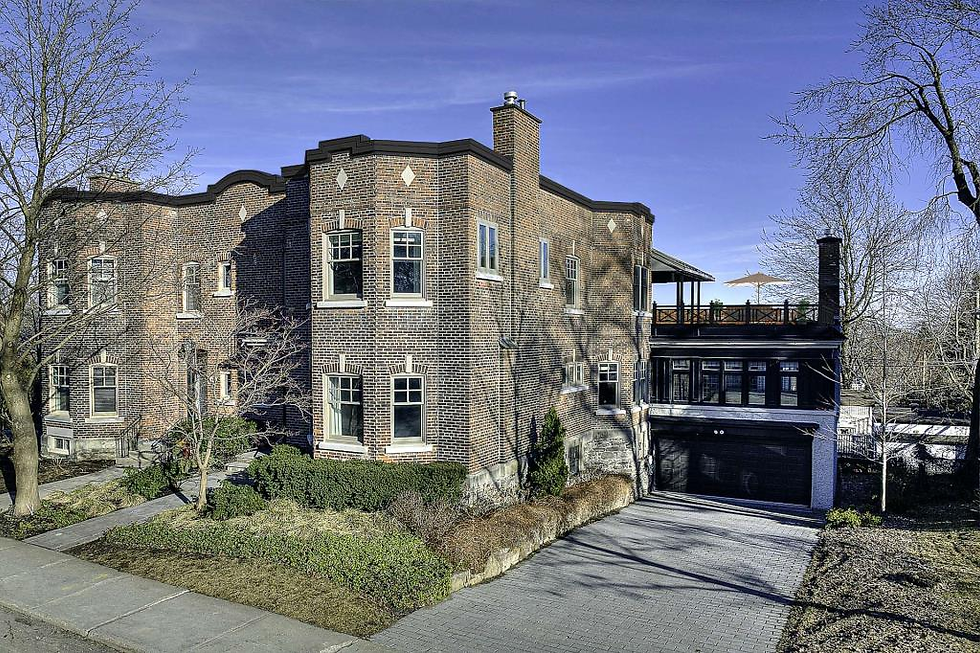

  Parking lot slope in a Wesmount, Montreal home

Parking Lot Drainage Installations: Types and Applications

Drainage Grates vs. Drainage Channels: Which is the Best Option for Your Parking Lot?

The choice between drainage grates and drainage channels for your parking lot in Montreal depends on several factors specific to your site, but we can analyze the advantages and disadvantages of each option in our climate context:

Drainage Grates: These are openings in the parking lot surface, usually connected to underground pipes. They can be circular, square, or rectangular.

• Advantages in the Montreal Context:

  1. Point Water Capture: Effective for collecting water in specific areas where it tends to accumulate, such as low spots or near entrances.

  2. Lower Risk of Obstruction by Snow and Ice: Typically have larger openings than channels, making them less prone to blockage by snow or ice, although maintenance is still important.

  3. Durability: Manufactured with resistant materials like cast iron, galvanized steel, or high-strength polymers, they can withstand heavy vehicular traffic and adverse weather conditions.

  4. Potentially Lower Initial Cost: For small areas or specific points, grate installation can be less expensive than an extensive channel system.

• Disadvantages in the Montreal Context:

  1. Lower Linear Catchment Capacity: Not as efficient at intercepting large volumes of water flowing across an extensive surface.

  2. Higher Risk of Water Accumulation Between Grates: If not strategically located, areas may remain where water accumulates before reaching a drainage point. This can exacerbate the freeze-thaw cycle in those zones.

  3. Potential Issue with Debris: Although less prone to snow blockage, they can accumulate leaves, sand, and other debris requiring regular cleaning to maintain efficiency.

Drainage Channels (or Linear Drainage Channels):

Garage threshold drain

These are linear drainage systems with an opening covered by a grate along their length. They collect surface water along their entire extent and direct it towards discharge points.

• Advantages in the Montreal Context:

• High Linear Catchment Capacity: Extremely efficient at intercepting and evacuating large amounts of rainwater and snowmelt along extensive areas of the parking lot. This is crucial during periods of heavy rainfall or rapid spring thaw.

• Minimizes Surface Accumulation: By intercepting water along a line, they significantly reduce the formation of puddles and, therefore, the risk of surface freezing and hydroplaning.

• Aesthetic Integration: Can be integrated more discreetly into the parking lot design, especially with slotted grate options or more modern designs.

• Facilitates Slope: Their linear design makes it easier to create a uniform slope for water flow towards discharge points.

• Disadvantages in the Montreal Context:

  1. Higher Risk of Obstruction by Snow and Ice: The linear grate can be more susceptible to blockage by accumulated snow and ice formation, requiring more proactive maintenance during winter.

  2. Higher Initial Cost: Installing a channel system covering a considerable surface area is usually more expensive than installing point grates.

  3. Regular Maintenance: Require periodic cleaning to remove leaves, sand, de-icing salt, and other debris that can accumulate along the channel and reduce their efficiency.

Which is the Best Option for Your Parking Lot in Montreal?

There's no single answer. The best option is often a strategic combination of both systems, adapted to the specific characteristics of your parking lot:

• Extensive and Flat Areas: Linear drainage channels are ideal for intercepting water flowing across the surface and preventing the formation of large puddles.

• Low Spots or Accumulation Areas: Point drainage grates can be strategically placed in these zones to collect water that may remain after surface drainage.

• Entrances and Exits: Channels just before building entrances or street exits can help prevent water from accumulating and entering structures or causing safety issues.

• Areas with Heavy Snowmelt: Consider grates with wide openings or channels with integrated de-icing systems (if budget allows) to handle large volumes of melting snow.

Key Factors to Consider When Making the Decision:

• Parking Lot Size and Slope: A large, flat parking lot may benefit more from channels.

• Water Flow Patterns: Identify areas where water tends to accumulate most.

• Amount of Vehicular and Pedestrian Traffic: The strength of the grates and channels must be adequate.

• Budget: The initial cost and long-term maintenance cost.

• Desired Aesthetics: How you want the drainage system to integrate into the overall design.

• Local Regulatory Requirements: Ensure compliance with Montreal city drainage regulations.

The Critical Importance of Positive Slope

What are Positive Slopes and Why are They the Foundation of Effective Drainage? (With explanatory diagrams).

Positive slopes are, in fact, the cornerstone of an effective drainage system, especially in a place like Montreal where we need to quickly evacuate large amounts of rainwater and snowmelt.

What are Positive Slopes?

A positive slope in the context of drainage refers to the gradual inclination of a surface designed to allow water to flow by gravity from a higher point to a lower point, where it can be collected and evacuated through a drainage system (grates, channels, pipes, etc.).

Imagine a gentle ramp: that's the basic idea of a positive slope for water. The key is that the inclination must always be in the direction of the drainage point.

Why are They the Foundation of Effective Drainage?

The effectiveness of a drainage system fundamentally depends on gravity to move water. Without adequate positive slopes, water:

• Will Stagnate: Forming puddles that can cause problems like the freeze-thaw cycle, hydroplaning, mold growth, and surface deterioration.

• Will Not Reach Drainage Points: Grates and channels will be ineffective if water doesn't flow towards them.

• Will Overload the System: If water accumulates instead of draining continuously, it can exceed the capacity of the drainage system when it finally arrives.

Explanatory Diagrams:

Here are two simple diagrams to illustrate the concept:

Diagram 1: Ideal Positive Slope

           Start Point (High)
              /|\
             / | \  Water Flow (Arrows)
            /  |  \
           /   |   \
          /    |    \
         /_____v______\
        Sloped Surface
               |
               | Drain/Grate/Channel (Low)

In this diagram, the parking lot surface has a constant incline from a higher point to a lower point where the drainage system is located. Gravity causes the water to flow naturally downhill towards the drain.

Diagram 2: Negative or Zero Slope (Problem)

           Start Point
              \ /
               |  Water Accumulation
              / \
             /   \
            /_____\
       Flat or Sunken Surface
               |
               v Drain/Grate/Channel (At a low point,
                                       but water doesn't reach)

In this diagram, the surface is flat or even has a dip (negative slope towards the local drainage point). Water cannot flow efficiently to the drain and accumulates, creating problems.

Key Principles of Positive Slopes in Parking Lot Drainage:

• Uniform Inclination: Ideally, the slope should be constant and in the direction of drainage. Avoid abrupt changes in slope that can retain water.

• Minimum Slope: There is a recommended minimum slope (usually expressed as a percentage, e.g., 1% or 2%) to ensure adequate water flow, even with minor surface irregularities.

• Direction of Flow: The parking lot design should guide water towards collection points (grates or channels) through these slopes.

• Consideration of Settlement: When building the parking lot, potential future ground settlement should be taken into account to ensure positive slopes are maintained over time.

• Maintenance: Even with good slopes, regular maintenance to remove debris that can obstruct water flow is crucial.

In the Montreal Context:

Positive slopes are even more critical in Montreal due to:

• Large Amounts of Snow and Snowmelt: We need an efficient way to quickly evacuate the resulting water to minimize the risk of freezing and associated damage.

• Heavy Rainfall: During storms, an adequate slope ensures that water does not accumulate rapidly and cause surface flooding or hydroplaning.

Common Errors in Creating Slopes and Their Costly Consequences.

Errors in creating slopes during the construction or renovation of a parking lot may seem minor at first, but in the long run, they can lead to very costly consequences, especially in Montreal's challenging climate.

Common Errors in Slope Creation:

1. Insufficient or Zero Slope:

   • Description: The parking lot surface is built with an inclination lower than recommended or, even worse, completely flat.

   • Costly Consequences:

     • Water Stagnation: Persistent puddles prolong water exposure, increasing the risk of the freeze-thaw cycle and pavement deterioration.

     • Hydroplaning: Higher risk of loss of vehicle control during rain, which can lead to accidents and legal liabilities.

2. Reverse Slope or "Water Pockets":

   • Description: Areas are created where the slope directs water towards the center of a section instead of towards drainage points, forming depressions where water accumulates.

   • Costly Consequences:

     • Concentration of Freeze-Thaw Cycle: These "pockets" become critical points of damage during winter, requiring localized but frequent repairs.

     • Severe Structural Damage: The constant accumulation of water in these areas can saturate the base layers, seriously compromising the long-term integrity of the pavement.

3. Irregular or Abrupt Slopes: The surface has sudden or inconsistent slope changes that hinder uniform water flow.

   • Costly Consequences:

     • Accumulation at Intermediate Low Points: Water can get trapped in slope transitions, creating small puddles.

     • Increased Stress on Pavement: Abrupt slope changes can create stress points in the pavement, making it more susceptible to cracking under vehicle weight.

     • Ineffective Drainage: Water does not efficiently reach grates or channels, reducing the overall effectiveness of the drainage system.

4. Lack of Consideration for Ground Settlement: Slopes are designed without considering the potential future settlement of the soil beneath the parking lot.

   • Costly Consequences:

     • Alteration of Original Slopes: Over time, uneven settlement can create reverse slopes or flat areas where there was originally adequate flow.

     • Need for Leveling or Reconstruction: Correcting slopes altered by settlement can require significant and costly repair work.

5. Disconnection Between Slopes and Drainage Points: Slopes are generally created correctly, but they do not effectively direct water towards the located grates or channels.

   • Costly Consequences:

     • Ineffectiveness of the Drainage System: The investment in grates and channels is wasted if water doesn't reach them.

     • Need for Relocation or Addition of Drains: Correcting this error can involve the costly relocation of drainage points or the installation of additional drains.

6. Errors in Construction Execution:

   • Description: Even with a good slope design, errors during the leveling and compaction of the ground can result in irregular surfaces and incorrect slopes.

   • Costly Consequences:

     • Need for Reworking: Correcting construction errors often requires redoing sections of the work, involving additional labor and material costs.

In the Montreal Context, the consequences of these errors are amplified due to:

• Intense Freeze-Thaw Cycles: Water stagnant on incorrect slopes becomes a much greater damage factor.

• Large Snowfalls and Snowmelt: The accumulation of snow and rapid melting require efficient slopes to prevent flooding and ice problems.

• Abundant Rainfall: Poor drainage can lead to safety issues and faster deterioration during heavy rains.



   house with a positive slope at the entrance and parking area.

Drainage Box Installation (at the Drainage Outlet): The Vital Control Point

The Essential Function of the Drainage Box at the Drainage Outlet: Prevention and Maintenance.

Essential Function: Prevention

The drainage box at the outlet of the system serves several crucial prevention functions:

• Capture of Sediments and Coarse Debris: It acts as an initial collection point for sand, gravel, leaves, de-icing salt, and other debris carried by surface water.

• Prevention of Pipe Obstructions: By retaining large solids, the drainage box significantly reduces the risk of blockages in underground pipes.

Essential Function: Maintenance

The drainage box greatly facilitates system maintenance:

• Cleaning Point: The accumulation of sediments and debris in the box is inevitable. However, it is much easier and more economical to clean a drainage box than to unclog an obstructed underground pipe.

• Flow Monitoring: The box allows for observation of the water flow exiting the parking lot's drainage system.

• Early Problem Detection: Regularly inspecting the box can identify early signs of problems such as cracked pipes, root intrusion, or excessive sediment accumulation, allowing for corrective action before extensive damage occurs.

The function of the drainage box is even more critical in Montreal due to:

• Extensive Use of Salt and Abrasives

• Spring Thaw

• Freezing Temperatures

Regular Maintenance of the Drainage Box:

For the drainage box to effectively perform its function, regular maintenance is crucial, including:

• Periodic Inspection: Visually check the box for sediment accumulation, debris, or signs of structural problems.

• Cleaning: Remove accumulated solids as frequently as necessary (which will depend on parking lot usage and environmental conditions).

• Flow Verification: Ensure water flows freely through the box.

  Conclusion: at Lave-Uni Montreal, we understand that the safety and integrity of your parking lot throughout Montreal are paramount. The correct installation of drainage boxes, strategic location and creation of effective positive slopes, as well as the appropriate selection and installation of channels and grates, are crucial investments to mitigate the challenges of our climate. If you require the expertise of professionals to carry out these works, rest assured that we are here to help you protect your long-term investment and ensure a safe environment for all users.
